CONTEST STATION W0AIH

CONTEST STATION W0AIH

.: 160 M Antennas

1/4 wave elevated feed vertical
2 Double-Extended Zepps at 170 feet
Full wave loop SE/NW
11 1040 foot beverages
3 element wire beam SE
Quarter wave sloper

.: 80 M Antennas

NE/SW Bobtail Curtain

NW/SE Bobtail Curtain

3 element vertical beam (NE/NW/SE/SW)

Bi-Square at 170 feet

4 520 foot beverages

Two double-ext Zepps shared with 160

.: 40 M Antennas

3/3 HyGain 403B at 180/90 feet
3 element Telrex on 46' boom at 70 feet

.: 20 M Antennas

4/4/4/4 Hygain 204B

5 element Telrex at 105 feet

4/4 at 70/35 feet fixed SE

6 element Telrex on 36 ft boom @ 160ft

6 element Telrex on 46 ft boom

4 wave Rhombic at 80 feet to 37 deg

.: 15 M Antennas

4/4/4/4 elements independently rotatable

5 element Telrex at 185 feet

3 elements at 40 feet

5/5 element Hygain 155BA at 110/70 feet

4 element Telrex at 45 feet

Tribanders and Dual Bander

.: 10 M Antennas

3/3/3/3 HyGain 103BA on 180 ft rotating tower

3 ele Telrex at 45 feet

6 ele Telrex at 53 feet

2 Tribanders

5/5/5/5 Hygain 105BA on 120 ft rotating tower

5 ele Telrex 195 ft (above 40m)

4 ele Cushcraft at 75 feet

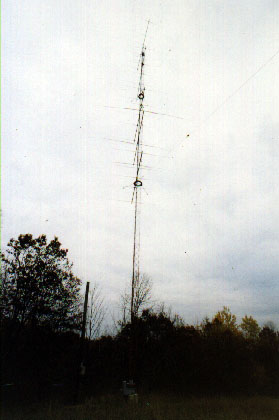

Towers



Num   Name/Pimary Use         Ant                     Height Type Face

1     Strum   40 m      3/3 ele Hygain 40m 180/90     200   Guyed 54 ?

                        6 ele 10m @ 90 200feet

2     Vesto 40 m        3 ele 40m   70 feet           70    SS    Taper

                        4 ele ??m

3     FVF Mem           TH5 60 ft                     60    SS??

4

5     10 m              6 ele 10m Telrex at 53 ft     50    Guyed

6     20 m              4 ele Telrex 20m              70 feet?? Pole/Twr (changed height this summer)

7     20 m              6 ele Telrex 20               160   Guyed

                        4/4/4/4 6m

                        2m ??

8     20 m              4/4/4/4 Hygain 204BA 20 m     180   Guyed/Rotate  3/3/3/3 10 m

                        8 ele  6m ??

9     20 m              5 ele Telrex 20m 105feet      110   Guyed         4/4 Hygain 20m Phased SE

10    15m               5 ele Telrex 36ftb 15m        200   Guyed

                        4/4/4/4 6m Fixed SE

                        5/5 Hygain 26ftb 15m 110/70 feet

                        4 ele cushcraft 15m

11    15m               4//4/4/4 15m Hygain           200   Guyed

12    10m               5/5/5/5 Hygain 10m            200   Guyed/Rotate

                        3 ele 20m 80feet

13    15/20             5/5 Telrex 15m 30’b 175/140ft??     200   Guyed/Rotate

                        6 ele Telrex 20m 46’b  ???Feet

14    160               1/4 Elevated Feed 24 elev radial    200               Guyed

15    First Tower West of Strum ???  Guyed I see something in my pix.  I don’t know what it is.

16

17

18

19

Ant List

160

      1/4 elevated feet, feedpoint at 60 feet, with 24 elevated radials

      2 Double Extended Zepps at 170 feet (shared with 80)

      3 ele wire beam ?? to SE, in valley ??

      Full-wave Loop SE/NW

      1/4 Wave sloper (direction ??)

      11 ?? 1040 foot beverages.

80

      NE SW Bobtail Curtain (two 3 ele arrays)

      NW SE Bobtail Curtain (two 3 ele arrays)

      3 element vertical beam (Switchable to NE NW SE SW)

      2 double ext Zepp's at 170 (shared with 160)

      Bi-Square, 2 wave loop with open opposiate the feed

      4 520 foot beverages (directions ???)

      Shared 160 beverages

40

      3/3 ele Hygain 403B Long John's at 180/90 feet  (Strum) (twr 1)

      3 ele Telrex on 46' boom ant at 80 feet on windmail tower(vesto) (twr 2)

20

      6 ele Telrex on 36 foot boom @ 160 feet (twr 7)

      4/4/4/4 element Hygain 204BA on 180 foot rotating tower (twr 8)

      5 ele Telrex 20m 105 feet (twr 9)

      4/4 Fixed SE at 70/35 feet (twr 9)

      6 element Telrex on 46 foot boom  (twr 13)

      2 4 wave Rhombic at 80 feet pointed 37 and ?? deg

      4 ele (changed this summer) twr 6 this is near trailers, move this summer

      3 element @ 80 feet (twr 12) this is on the 10m rot tower ??

15

      4/4/4/4 ele mod/ext HyGain 155BA on 200 foot rotating tower (tower 11)

      5/5 element Telrex on 30 foot boom on rotating tower twr 13 (new tower)

      5/5 Hygain 155BA on 26 ft boom 110/70 feet (twr 10)

      5 ele Telrex at 185 (twr 10)

      4 ele Telrex at 45 (twr ??)

      3 ele at 40 (Pole twr ??)

      Tribanders

      Dual bander

10

      6 ele Telrex at 53 feet (twr 5)

      3/3/3/3 HyGain 103BA 200 foot rotating tower    (20m tower) (twr 8)

      5 ele Telrex at 200 feet  90 deg from 40 meter ant (twr 1)

      5/5/5/5 Hygain 105BA on 180 foot rotating tower       (twr 12)

      3 ele Telrex at 45 feet

      4 ele Cushcraft at 75' (twr 10)

      2 Tribanders
